Medium-Format Scientific Imaging Camera
Q25 – 245 MP Cooled Monochrome Camera
Ultra-high-resolution medium-format imaging with native 16-bit output and active cooling for scientific, cultural heritage, forensic and fine-art workflows.
245 MP
Resolution class
54.1 × 36.1 mm
Active sensor area
16-bit
Native
245 MP
High-resolution BSI monochrome capture
2.81 µm
Square pixel size
1.2–3.2 e⁻
Approximate read noise
28-57 ke⁻
Full-well mode
Overview
More detail in every frame.

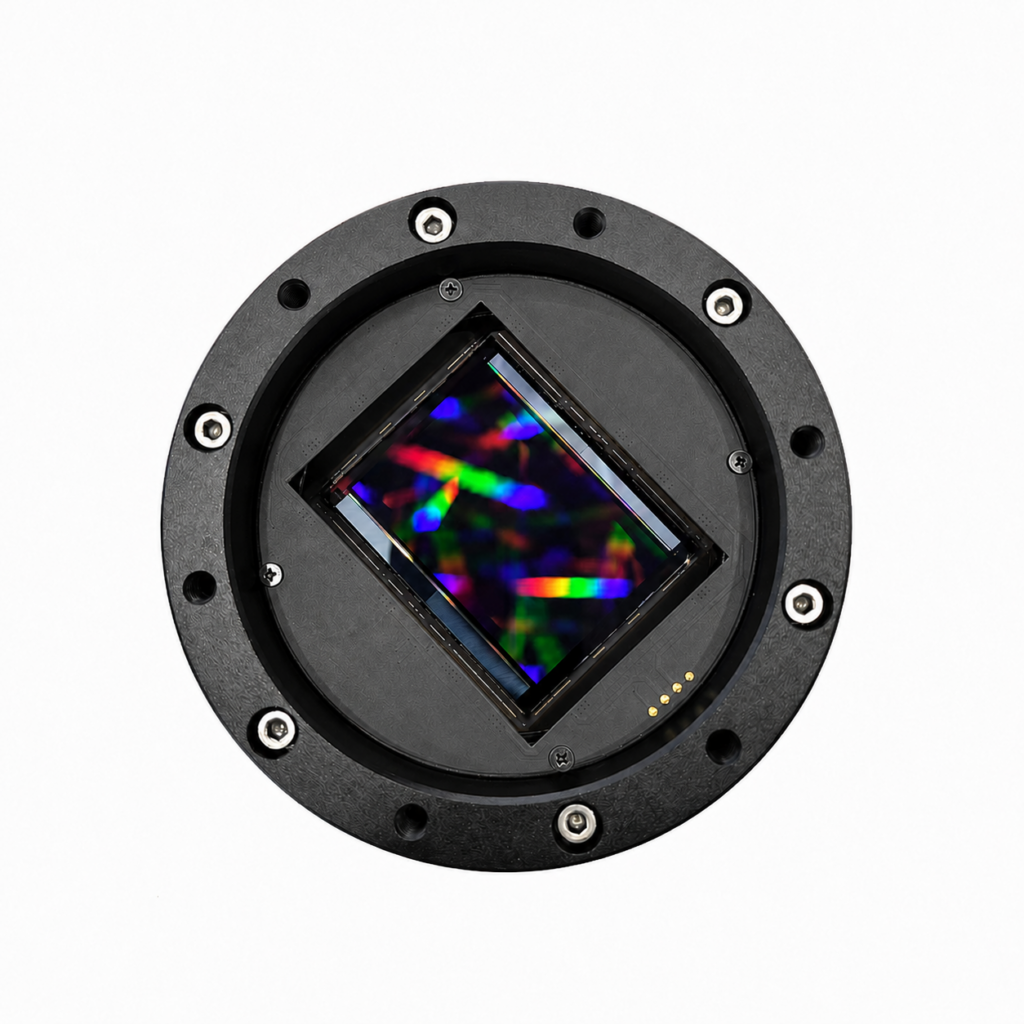

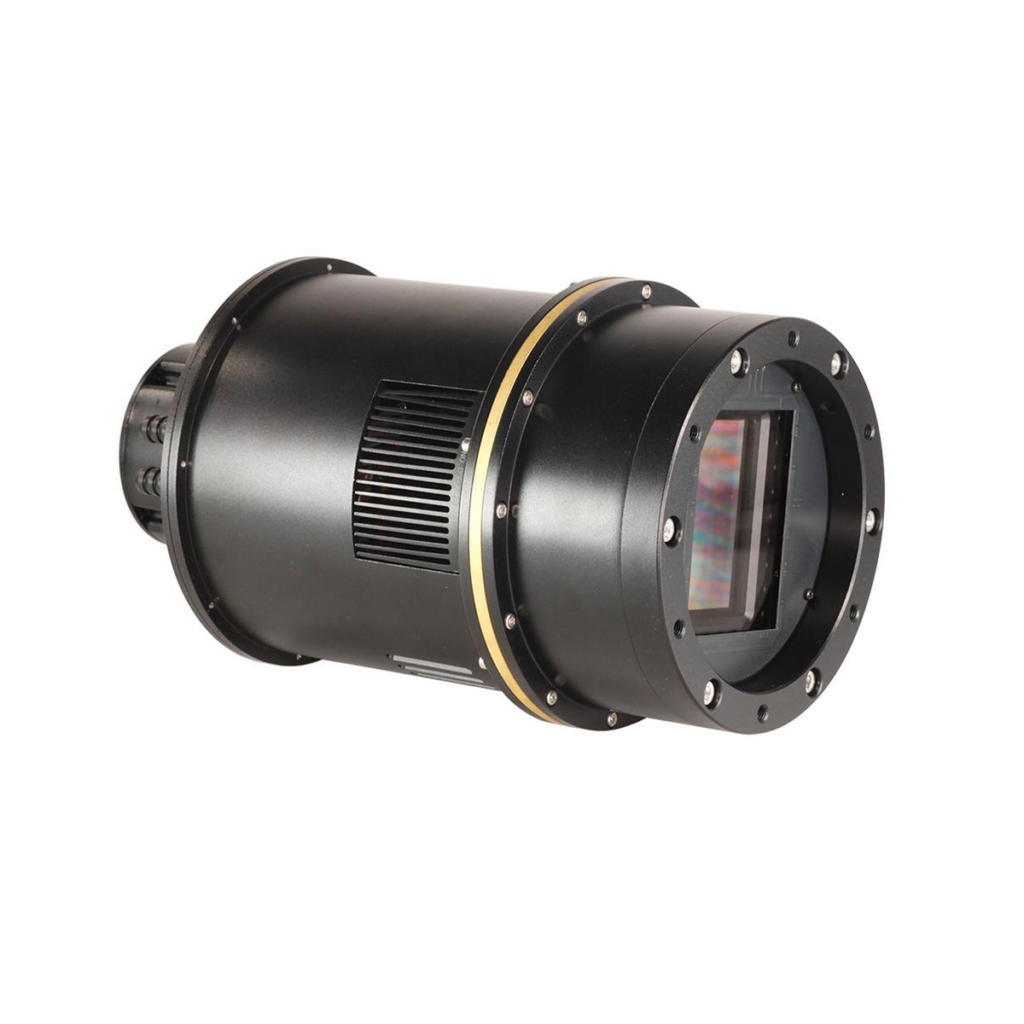

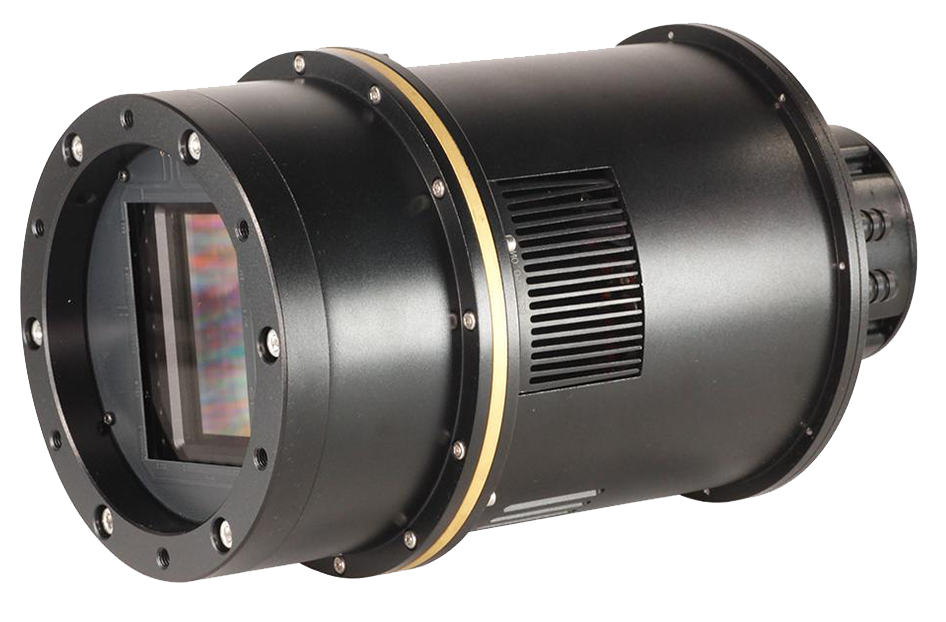

The MegaVision Q25 combines a 245 MP-class Sony IMX811 back-illuminated monochrome CMOS sensor with native 16-bit output and active cooling. Final mechanics and interfaces are defined by the selected MegaVision system.
With 19,240 × 12,840 active pixels and a 2.81 µm pixel pitch, the Q25 captures fine detail across a large field of view. FD 2 × 2 charge-domain binning provides another acquisition option for applications that need a different balance of resolution, sensitivity and readout speed.
Product information
Exceptional detail
A 245 MP-class sensor captures fine structures and subtle surface information across a large medium-format imaging area.
FD 2 × 2 binning
Combines signals from neighboring pixels before conversion, for greater signal sensitivity.
Low-noise imaging
Active cooling helps reduce dark current during extended exposures, while selectable acquisition modes support varied imaging needs.
Designed for specialist imaging
- Cultural heritage and multispectral documentation
- Scientific and measurement-focused imaging
- Forensic examination
- Fine-art reproduction
- High-resolution archival capture
Sensor and imaging
| Model | Q25 |
| Camera type | Cooled monochrome scientific CMOS camera |
| Sensor | Sony IMX811 back-illuminated CMOS |
| Active pixel array | 19,240 × 12,840 pixels |
| Total array including overscan | 19,776 × 13,120 pixels |
| Product resolution class | 245 MP |
| Pixel size | 2.81 × 2.81 µm |
| Active image area | Approximately 54.1 × 36.1 mm, calculated from active pixels and pixel pitch |
| Sensor configuration | Monochrome |
| Shutter | Electronic rolling shutter |
| A/D conversion | Native 16-bit, up to 65,536 digital levels |
| Full-well capacity | 28-57 ke⁻ (depending on Q25 operating mode) |
| Read noise | 1.2–3.2 e⁻ (mode dependent) |
| Dark current | Approximately 0.00053 e⁻/pixel/s at −30 °C |
| Exposure range | 20 µs to 3,600 s |
Connectivity, cooling and mechanics
| Computer interface | USB 3.0; 2*10 Gigabit Fiber |
| Image buffer | 2 GB DDR3 |
| Firmware upgrades | Supported through USB |
| Cooling | Two-stage thermoelectric cooling; liquid-cooling option subject to Q25 configuration |
| Anti-dew and humidity control | Confirm for the selected Q25 system |
| Mount and back focal distance | Configuration dependent |
| Dimensions and weight | Contact MegaVision |
Native 16-bit conversion
The sensor provides native 16-bit analog-to-digital conversion with up to 65,536 digital levels. This supports precise tonal sampling and flexible scientific or specialist image processing.
Back-illuminated sensor
The back-illuminated design allows incoming light to reach the photosensitive region with reduced obstruction from front-side wiring, supporting efficient photon collection and strong sensitivity.
FD 2 × 2 binning
Charge-domain FD 2 × 2 binning combines neighboring pixel signals before conversion, offering a lower-resolution capture mode. Confirm available binning modes in the delivered Q25 system.
Anti-dew protection and cooling
Two-stage thermoelectric cooling helps reduce sensor temperature and dark current. Confirm optical-window heating, chamber design and optional liquid cooling for the final Q25 configuration.
Discuss your imaging requirements
Tell us about your resolution, spectral range, mounting, cooling, illumination and integration needs. MegaVision can help determine the appropriate Q25 configuration for your application.
