Full-Frame Scientific Imaging Camera
Q6 60 MP Cooled Monochrome Camera
High-resolution full-frame capture, native 16-bit output, back-illuminated sensor, and active cooling for demanding scientific, cultural heritage, forensic and fine-art imaging workflows.
60 MP
Resolution class
36 × 24mm
Active sensor area
16-bit
Native
60 MP
High-resolution BSI monochrome capture
3.76 µm
Square pixel size
3.4 e⁻
Approximate read noise
66 ke⁻
Full-well mode
Overview
Full-frame detail. Controlled noise.

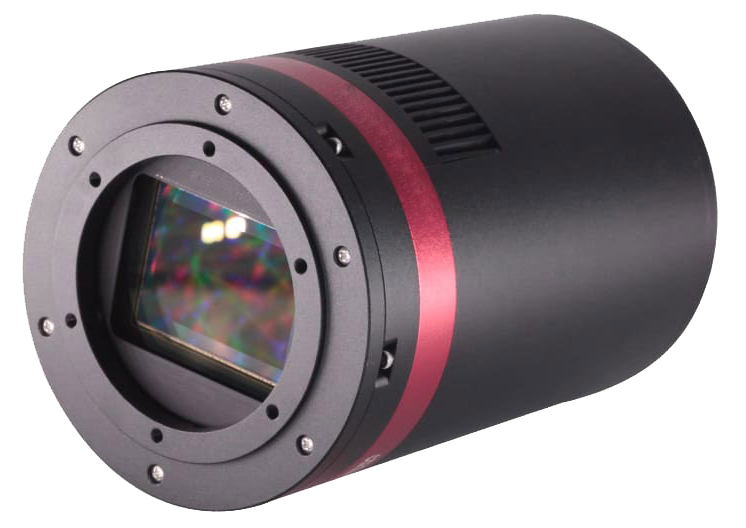

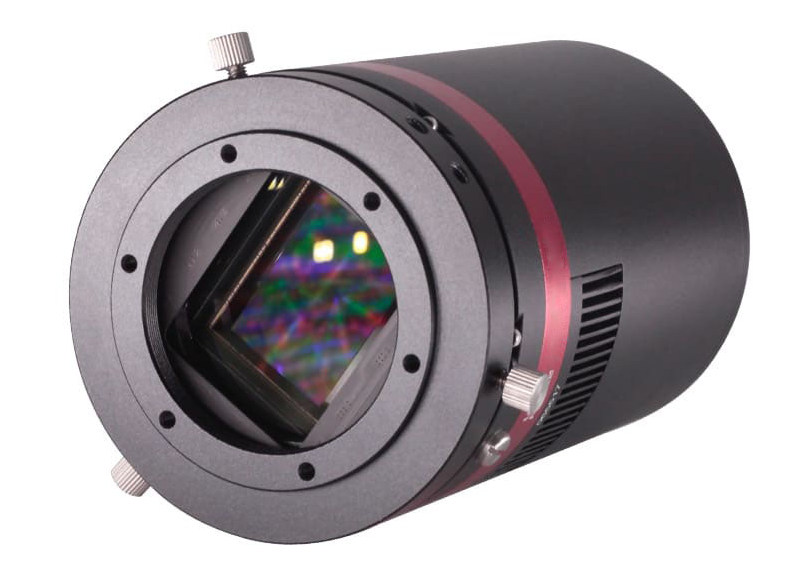

The MegaVision Q6 combines a 60 MP Sony IMX455 back-illuminated monochrome CMOS sensor with native 16-bit output, active cooling and a configuration adapted for selected MegaVision imaging systems.
Its 36 × 24 mm imaging area supports detailed capture across a broad field of view. Low read noise, multiple readout modes and buffered image transfer make the Q6 suitable for scientific imaging, multispectral documentation, forensics and fine-art reproduction.
Product information
Exceptional detail
A 60 MP sensor records fine structures and subtle surface information across a large full-frame imaging area.
Native 16-bit output
Natively provides up to 65,536 digital levels for precise tonal sampling and flexible post-processing.
Low-noise imaging
Low read noise and active cooling support clean, consistent imaging during demanding or extended exposures.
Designed for specialist imaging
- Cultural heritage and multispectral documentation
- Scientific and measurement-focused imaging
- Forensic examination
- Fine-art reproduction
- High-resolution archival capture
Sensor and imaging
| Model | Q6 |
| Camera type | Cooled monochrome scientific CMOS camera |
| Sensor | Sony IMX455 back-illuminated CMOS |
| Active pixel array | 9,576 × 6,388 pixels |
| Total array including overscan | 9,600 × 6,421 pixels |
| Effective resolution | Approximately 61.2 MP |
| Product resolution class | 60 MP |
| Pixel size | 3.76 × 3.76 µm |
| Active image area | 36 × 24 mm |
| Sensor configuration | Monochrome |
| Shutter | Electronic rolling shutter |
| A/D conversion | Native 16-bit, up to 65,536 digital levels |
| Full-well capacity | Approximately 66 ke⁻ in standard full-resolution operation |
| Read noise | Approximately 3.4 e⁻ |
| Dark current | Approximately 0.002 e⁻/pixel/s at −20 °C |
| Exposure range | 20 µs to 3,600 s |

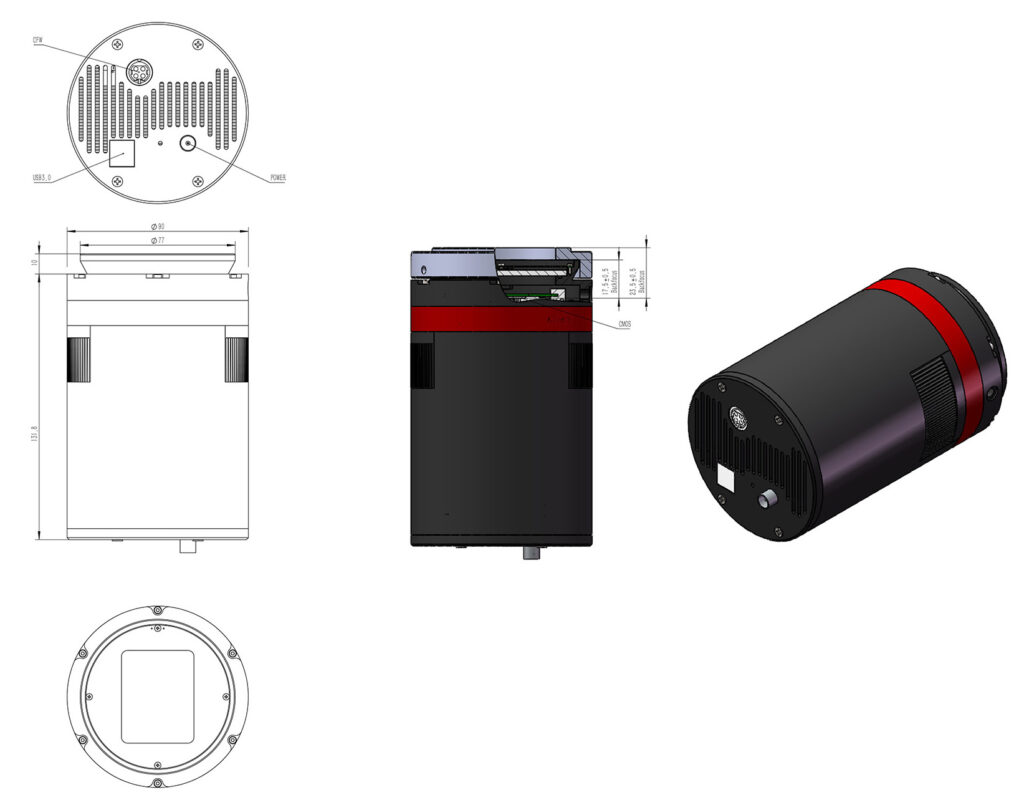

Connectivity, cooling and mechanics

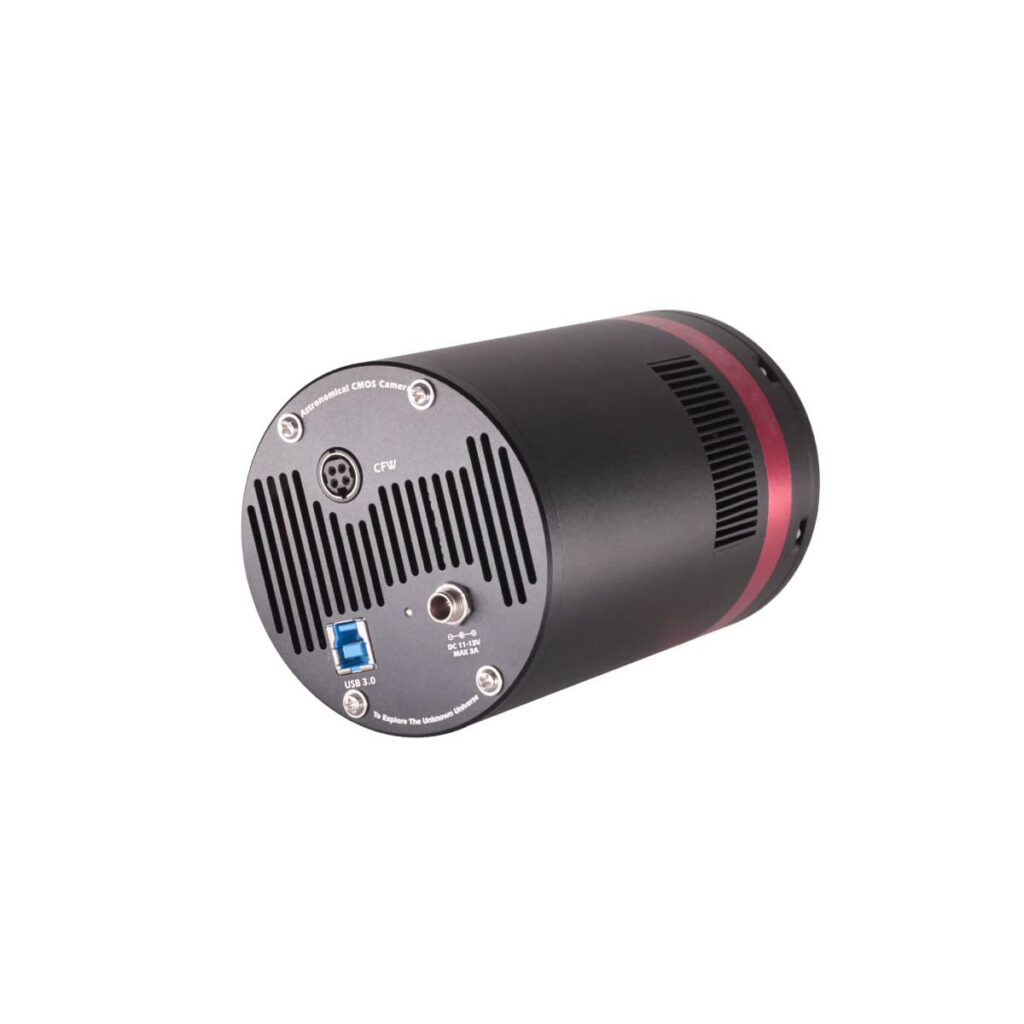

| Computer interfaces | USB 3.0 |
| Image buffer | 2 GB |
| Cooling | Two-stage thermoelectric cooling; air cooling compatible |
| Rated cooling performance | Dependent on ambient temperature, airflow and final system configuration |
| Anti-dew heater | Yes |
| Optical window | Multi-layer anti-reflection coated clear glass |
| Weight | Contact MegaVision |
Native 16-bit conversion
The sensor provides native 16-bit analog-to-digital conversion with up to 65,536 digital levels. This supports precise tonal sampling and flexible scientific or specialist image processing.
Back-illuminated sensor
The back-illuminated design allows incoming light to reach the photosensitive region with reduced obstruction from front-side wiring, supporting efficient photon collection and strong sensitivity.
True RAW data
The Q6 provides minimally processed image data to preserve the original captured signal and maintain flexibility for calibrated scientific, multispectral and specialist post-acquisition workflows.
Anti-dew protection and cooling
A heated optical window and sealed sensor chamber help control condensation. Two-stage thermoelectric cooling reduces sensor temperature to help minimize dark current during extended exposures.
Discuss your imaging requirements
Tell us about your resolution, spectral range, mounting, cooling, illumination and integration needs. MegaVision can help determine the appropriate Q6 configuration for your application.
